Product Description

Applications:

Furniture production: solid and panel wood furniture cutting and 2D/3D carving, furniture legs carving, wood, chipboards, mdf, etc.

Advertisement industry: acrylic, plastic, PVC, color board,etc.

Aluminum and other soft metal carving.

Main configurations of the machine:

1. 4.5KW Air-Cooled Brushless Spindle, HQD brand, best one in China. It no need cooling by water pump, better used for working wood, acrylic, plastic, aluminum etc materials.

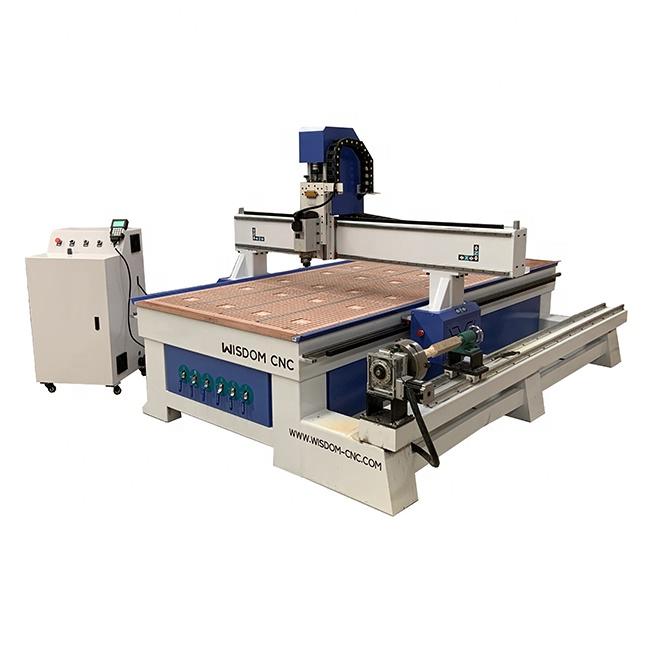

2. Vacuum table with rotary attachment, for wood panel and cylinders engraving

3. Taiwan Hiwin Square guide rails and rack pinion transmission with X,Y axis

4. Lubrication System

Lubrication is very important to all mechanical parts including Gears, Racks, Ball Screws, Runner Blocks, Bearings and so forth. Due to the fact that so many components require lubrication regularly, we have installed the one push lubrication system that ensures the lubrication of every component on our machines. Using normal vehicle engine oil is advised. And all you have to do is refill the oil tank and push the pump lever once a week to ensure the oil reaches all the  necessary components.

5. DSP handle cnc control system

o   Machine no need to connect with computer when working.

o   NC Language: G-Code (.NC file ), the most widely used numerical control ( NC ) programming language.

o   You can use almost every NC software, CAD/CAM software to generate G-Code for our CNC Routers, which includes: ArtCAM, CAXA, Mastercam, Powermill, Rhino,Vcarve and so on.

6. Combined vacuum table and T-slot table,not only can hold material by suction,but also clamps.

Vacuum Table with Rubber Sealing Ring, it hold the workpiece by suction, save labor and time

Liquid Ring Vacuum Pump, 5.5kw

The vacuum table surface is made of PVC grey plate and the pattern is machined by a CNC Wood Router itself after it has been installed, which provides commensurable even working surface and replaceability. Our vacuum table has several different zones with an independent switch control so that only the sections used for clamping are live.

7. Dust collector, collect the exhaust and dust

Both the cutting process and the carving process generate immense dust. With the dust collection systme, all dust residue is controlled within a small area by employing the brush of the dust hood on the spindle to get the residue vacuumed away into the dust bag of the dust collector. With our effective dust collection system,you have a cleaner working environment, longer lifespan of machine`s mechanical parts and most importantly, a healthier workforce.

We provide a dust hood for every cnc wood router. With the dust hood,you will be able to connect to our dust collector or your own Dust collecting system.Dust hood

Dust hose

The dusting hose is included in the purchase if buy the dust collector. A general soft dusting hose with a diameter of 100mm and length 4m or longer is required to connect the machine to the dust collector.

Technical Specifications:

Model	WS-R1325
X,Y Working Area	1300 x 2500mm
Z Working Area	200-300mm
Lathe Structure	Welded steel lathe bed
X,Y Structure	Helical Rack and pinion transmission, high precision than vertical one
Z Structure	Thick ball screw, Hiwin linear Square guide rail
Spindle	4.5kw air-cooling spindle
Spindle Rotate Speed	0-24000r/min, variable speed
Inverter	Fuling brand
Drive Mode	Servo motor and drivers
Oil lubrication	Included
Command	G code,HPGL,U00,mmg,plt
Operating System	DSP 4 Axis
Diameter of cutter	φ3.175-φ12.7mm
Collet	ER1/8-ER1/2
Working table	Vacuum and 5.5kw vacuum pump
Travelling speed	0-48m/min
Working speed	0-24m/min
Working voltage	AC380/220V 50/60Hz



Payment Terms︰ T/T,L/C,Western Union
